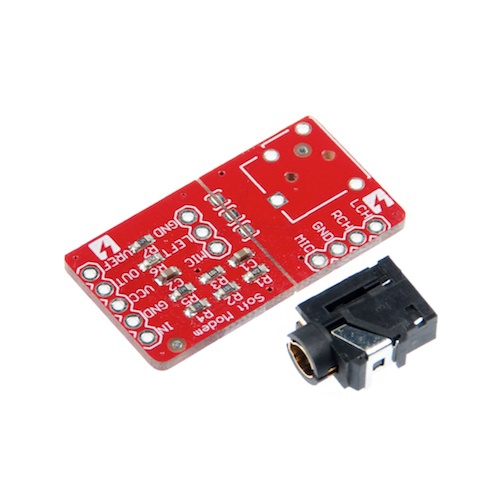

Audio Jack Modem for iPhone and Android

Connect to Arduino as follows (right side is the Arduino's pin.)

FSKOUT -> D3
GND -> GND
VCC -> VCC
FSKIN -> D6
AIN1 -> D7

Audio Jack Modem for iPhone and Android
Name Audio Jack Modem for iPhone and Android
Code SSCI-SOFTMODEM2
SKU# 600
  • Arduino Uno R3
    Arduino Uno R3 ARDUINO-A000066 (789)

    The Arduino Uno is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16MH ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
